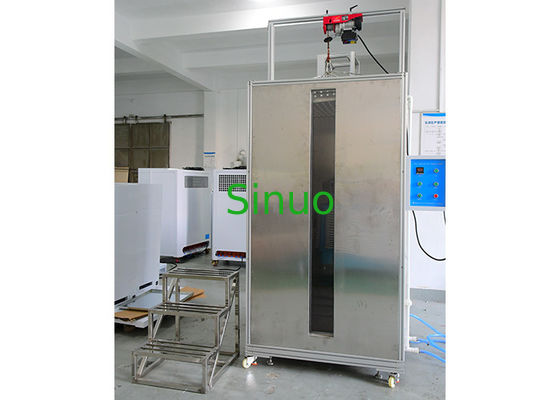

IPX7 Waterproof Test Chamber Immersion Tank Water Resistance Testing Equipment IEC60529
Product information:
The IPX7 Waterproof Test Chamber is designed to verify the waterproof performance of electrical and electronic products under immersion conditions. Built according to IEC60529 (IP Code), IEC60884-1, IEC60335-1, and IEC60598-1 standards, this equipment provides reliable testing for product design, R&D, certification, and factory inspections.
Features & Benefits
Durable Construction – Stainless steel inner chamber (2.0 mm thickness) with aluminum profile frame ensures long service life.
Large Immersion Capacity – Test tank supports up to 1.8 m water depth, suitable for a wide range of products.
Clear Observation Window – 12 mm tempered glass window (200 mm width) for real-time monitoring.
Precise Water Control – Manual inlet/drain valve with 1 mm accuracy scale display.
Flexible Test Settings – Programmable test duration from 0.01 s to 99.99 h.
Safe & Convenient Handling – Electric stainless-steel lifting basket with button-control hoist.
Technical Parameters:
|
Chamber external size |
Approximately W 1080* D 1080*H 2300mm (including casters) |
|
Chamber inner size |
Length 1000* W 1000* H1800mm |
|
Max. test water depth |
1.8m |
|
Observation window |
Tempered glass (thickness: 12mm) |
|
Observation window width |
200mm |
|
Water level adjustment method |
Water inlet / drain valve, manual adjustment |
|
Water level display |
Scale (accuracy 1mm) |
|
External chamber material |
Stainless steel plates + Aluminum profile frame |
|
Inner chamber material |
2.0mm thickness stainless steel |
|
Electric lifting basket |
Made of stainless steel, controlled by electric hoist |
|
Control method |
Buttons (non-PLC) |
|
Test time |
0.01 second-99.99hours can be preset |
|
Immersion depth requirements |
The lowest point of enclosure with a height less than 850 mm is located 1000mm below the surface of the water The highest point of enclosure with a height equal to or greater than 850mm is located 150mm below the surface of the water |
|
Test content |
IPX7 |
|
Power supply |
AC 220V,50Hz, 1KW |
Applications and importance
IPX7 testing is a critical step for manufacturers to ensure product safety, quality, and regulatory compliance.
Consumer electronics: Widely used for devices like smartphones, smartwatches, and headphones that are frequently exposed to moisture.
Industrial and automotive: Critical for evaluating components and enclosures used in harsh, wet conditions.
Product safety: Testing helps manufacturers identify weak points in a product's seals and design to prevent malfunction and potential hazards.
Competitive advantage: Achieving an IPX7 rating can be a valuable marketing claim, boosting consumer confidence in the product's durability.
