| MOQ: | 1 |
| 가격: | Customized |
| 표준 포장: | 합판 |
| 배송 기간: | 30일 |
| 결제 방법: | T/T, 서부 동맹 |
| 공급 능력: | 달 당 10 세트 |
| No. | Component Name | IP Code | Specifications |
|---|---|---|---|
| 1 | Vertical Rain Drip Test Apparatus | IPX1~2 | Drip area: 1000mm*1000mm |
| 2 | Oscillating Tubes Test Apparatus | IPX3~4 | Multiple tube radii: R200mm to R1600mm |
| 3 | Spray Nozzle | IPX3~4 | Manual operation for hard-to-reach areas |
| 4 | Hose Nozzle | IPX5~6 | High-pressure water jet testing |
| 5 | Integrated Immersion Chamber & Control System | IPX7 | Chamber size: 650mm*600mm*1500mm |
| 6 | Deep Immersion Tank | IPX8 | Pressure vessel: φ600*1000mm |
| 7 | Turntable | Accessory | φ600mm, 150kg bearing capacity |
| Parameter | Specification |
|---|---|
| Application | IPX1, IPX2 testing |
| Rain Area | 1000mm × 1000mm |
| Tank Material | Stainless steel |
| Dripping Aperture | ￠0.4mm |
| Hole Distance | 20mm |
| Rainfall Flow | 1mm/Min, 3mm/Min, user-set parameters (±0.5mm/min error) |
| Water Dripping Height | 200mm (automatically controlled) |
| Test Time | 10Min minimum (user configurable) |
| Body Material | Industrial aluminum alloy |
| Dimensions (L×D×H) | 1100×1200×2800mm |
| Parameter | Specification |
|---|---|
| Water Supply | ＞10L/min±5% clean filtered water |
| Oscillating Tubes | R200mm, R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm (stainless steel) |
| Needle Hole | Φ0.4mm |
| Included Angle | IPX3: 120°; IPX4: 180° |
| Swing Angle | Maximum ±175° (presettable) |
| Swing Speed | IPX3: 4s/time (2×120°); IPX4: 12s/time (2×360°) |
| Water Flow | 0.07 L/min per hole (configurable) |
| Testing Time | 0.01S ~ 99 hours 59mins (presettable) |
| Pressure Gauge | 0~0.25MPa |
| Parameter | Specification |
|---|---|
| Water Supply | 50～150kpa clean water |
| Nozzle Diameter | External: Ф102mm; Spherical: SФ75.5mm |
| Hole Configuration | 121 holes total: 1 middle hole, 24 inner holes (30°), 96 outer holes (15°) |
| Hole Diameter | Ф0.5mm |
| Material | Brass |
| Water Flow | 10L/min±5% (adjustable with flow meter) |
| Baffle | Removable for IPX4 testing |
| Parameter | IPX5 Specification | IPX6 Specification |
|---|---|---|
| Water Supply | ＞12.5L/min±5% clean water | ＞100L/min±5% clean water |
| Nozzle Diameter | Ф6.3mm | Ф12.5mm |
| Water Flow | 12.5±0.625L/min | 100±5 L/min |
| Distance to Enclosure | 2.5~3m | 2.5~3m |
| Testing Time | ≥1min/m² (minimum 3 mins) | ≥1min/m² (minimum 3 mins) |
| Test Room Requirements | Width >3m with drainage | Width >3m with drainage |
| Parameter | Specification |
|---|---|
| Turntable Diameter | Ø600mm |
| Turntable Speed | 1rpm |
| Tiltable Angle | 0° and 15° positions |
| Test Rotation Angle | 90°, continuous rotation |
| Body Material | Industrial aluminum alloy |
| Dimensions (L×D×H) | 800×800×250mm |
| Load Capacity | 150kg maximum |
| Control | Reversible control via control cabinet |

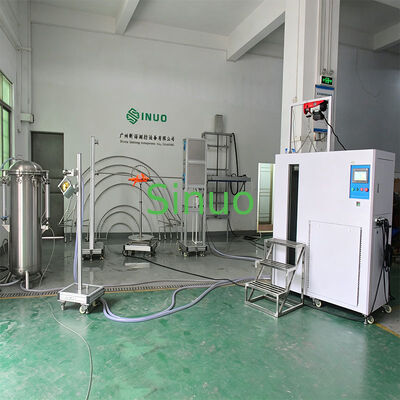

The IEC 60529 Full-featured IPX1-IPX8 Integrated Waterproof Testing System is a comprehensive solution designed for manufacturers, testing laboratories, certification bodies, and research institutes requiring complete water ingress protection testing.
Unlike conventional testing setups that require multiple independent systems for different IPX ratings, this integrated solution combines IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7, and IPX8 testing capabilities into one efficient platform.
With a single investment, users can perform the full range of waterproof testing required by IEC 60529 and related international standards.
✔ One Integrated System for IPX1-IPX8 Testing
✔ IEC 60529 Compliant Design
✔ Reduced Laboratory Space Requirements
✔ Lower Equipment Investment Costs
✔ Improved Testing Efficiency
✔ Suitable for Product Development, Certification, and Quality Control
Many laboratories use separate systems for dripping, spraying, jetting, and immersion tests, resulting in higher investment costs and increased floor space requirements.
Sinuo's integrated IPX1-IPX8 waterproof testing system enables users to complete all required water ingress protection tests using one coordinated solution, improving laboratory efficiency and simplifying equipment management.
Whether you are building a new testing laboratory or upgrading existing facilities, this system provides a practical and cost-effective solution for complete IEC 60529 waterproof testing.
| Test | Description |
|---|---|
| IPX1 | Vertically Falling Water Drops |
| IPX2 | Tilted Dripping Water Test |
| IPX3 | Oscillating Tube Spray Test |
| IPX4 | Splash Water Test |
| IPX5 | Water Jet Test |
| IPX6 | Powerful Water Jet Test |
| IPX7 | Temporary Immersion Test |
| IPX8 | Continuous Immersion Test |
✔ Free Technical Consultation
✔ Laboratory Planning Assistance
✔ Customized Test Solutions
✔ Global Installation Support
