| MOQ: | 1 |
| 가격: | Customized |
| 표준 포장: | 합판 케이스 |
| 배송 기간: | 30일 |
| 결제 방법: | 티/티 |
| 공급 능력: | 한 달에 50 세트 |

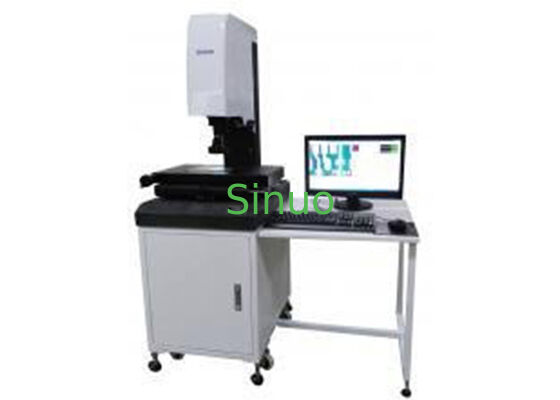

Video Measuring System With 2D Contour Scanning Direct Point-And-Measure Function
Product Information:
The JVB300H Video Measuring System is a high-accuracy, granite-based 2D vision metrology instrument designed for precise dimensional inspection, contour measurement, and quality control of complex components. It is widely used in precision electronics, connectors, tooling, metal parts, injection molding, semiconductors, automotive components, laboratories, and industrial metrology departments.
Product Features:
High-hardness, high-precision granite base and column, ensuring outstanding stability and long-term durability.
Adjustable LED surface light and contour light, providing uniform illumination with low heat generation.
Continuous zoom lens enables real-time magnification adjustment during measurement.
X/Y axes adopt linear guide rail and slider structure, improving rigidity and repeatability.
Integrated graphic report output, allowing quick export of inspection results.
Equipped with laser locator to accurately indicate measurement position.
Software: OVM standard version—simple, intuitive, and easy to operate.
Applications:
The JVB300H efficiently measures contours, surface features, dimensions, angles, and positional relationships of complex precision components.
It is suitable for industries such as:
Electronics
Instruments & meters
Cables and wiring
Tooling & fixtures
Precision machining
Automotive & aerospace
Semiconductors
Connectors & stamping parts
Plastics and rubber components
Research institutes and metrology centers
Technical Parameters:
| Item | Specification |
|---|---|
| Model | JVB300H |
| Measurement Travel (X×Y×Z) | 300 × 200 × 200 mm |
| Overall Dimensions | 1200 × 700 × 1540 mm |
| Table Load | 30 kg |
| Operation Mode | Manual (with fast-movement switching) |
| Magnification | Optical 0.7×–4.5× / Image 28×–180× (customizable) |
| Measurement Software | Standard 2D measurement software |
| Power Supply | (110V/220V) ±10%, 50/60 Hz |
| Linear Scale | 0.5 µm high-precision scale |
| Accuracy | (2.0 + L/200) µm |
| Repeatability | 2 µm |
| Working Environment | 20–25°C; RH 45%–75% |
| CCD | 2.6 MP Color Digital CCD |
| Lens | High-definition industrial optical lens |
| Illumination | Contour light + surface light (interchangeable) |
Software Overview:
Key Features
Direct point-and-measure function
Basic geometric measurement
Composite element measurement
Form and position tolerance evaluation
Coordinate system setup
2D contour scanning
Output to Word, Excel, CAD formats
Automatic edge detection via mouse click—no need to reposition the worktable
Measurement Capabilities:
Geometric elements: points, lines, circles, arcs, ellipses
Composite calculations: center distance, tangency, midline, perpendicular distances, angle bisectors, intersection points
Form tolerance evaluation: concentricity, roundness, straightness, position, inclination
Coordinate adjustment: translation, rotation, re-establish coordinate system
Data reporting: exportable to office software for analysis and printing
|
|
