| MOQ: | 1 |
| 가격: | Customized |
| 표준 포장: | 합판 케이스 |
| 배송 기간: | 30일 |
| 결제 방법: | 티/티 |
| 공급 능력: | 한 달에 10 세트 |

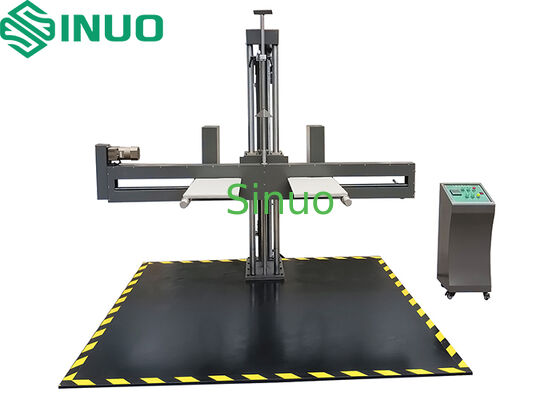

High-Precision Drop Test System For Packaging Impact And Reliability Testing
Product information
This Drop Test System is mainly used to evaluate the impact effects experienced by packaged goods during transportation and handling, in order to determine the shock resistance of the packaging and assess the rationality of the packaging design.
The machine conducts vertical free-fall impact tests on the specimen. The specimen can be dropped freely on its faces, edges, or corners, and the drop height can be preset. Once the specimen reaches the set height, the lifting mechanism stops automatically and holds the position. The distance between the supporting arms can be adjusted electrically according to the product size.
The release mechanism is designed to be flexible and reliable, ensuring that the specimen experiences no external force at the moment of release or during free fall, thereby guaranteeing an accurate drop posture and test result.
Features
1. Precision design and manufacturing, elegant appearance, and ultra-quiet operation.
2. Thickened base plate to withstand the impact force of falling products; the surface is treated with anti-rust baked paint for long-term use without deformation or corrosion.
3. Drop platform surface coated with anti-static baked paint for a refined appearance.
4. Adjustable clamping fixtures to accommodate various product shapes and sizes.
5. Electrically driven lifting mechanism for stable and durable performance.
6. Electromagnetic release system for controlled drop operation.
7. Adjustable arm spacing via electric motor buttons, suitable for testing multiple product types.
Technical Parameters
|
Drop height |
200–1500 mm (customizable) |
|
Maximum test weight |
0–100 kg (customizable) |
|
Maximum specimen size |
1200 × 800 × 800 mm (L × W × H) |
|
Impact base plate size |
1400 × 1900 × 14 mm (solid iron plate, 14 mm thick) |
|
Drop angle error |
< 2° |
|
Drop height error |
±10 mm |
|
Drop orientations |
Face, Edge |
|
Lifting mode |
Motor-driven |
|
Height display |
Digital counter with calibration function |
|
Drop control |
Electromagnetic release, activated by drop button |
|
Reset method |
Manual reset |
|
Safety protection |
Upper and lower limit switches on the lifting column |
|
Machine dimensions |
Approx. 1600 × 2000 × 1850 mm (W × D × H) |
|
Equipment weight |
Approx. 550 kg |
|
Power supply |
AC 380 V, 50 Hz |
|
Power consumption |
1.5 kW |
|
Environmental Conditions |
Ambient temperature: 5 °C – +28 °C (average within 24 hours ≤ 28 °C). |
|
Power supply |
Three-phase five-wire system |
|
Voltage range |
AC 380 V |
|
Frequency tolerance |
(50 ± 0.5) Hz |
|
Ground resistance |
< 4 Ω |
|
Notice:The user should provide an independent air or power switch with sufficient capacity dedicated to this equipment. |
|
|
|
