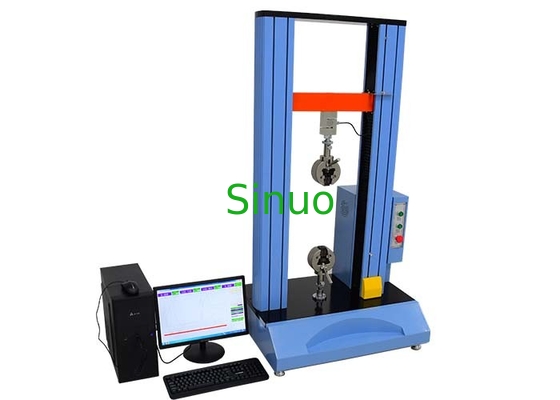

IEC 60245-1 Tensile Strength Test Machine Test Range 2000N Computer Control

IEC 60245-1 Tensile Strength Test Machine Test Range 2000N Computer Control

MOQ: 1
가격: Negotiable
표준 포장: Plywood Case
배송 기간: 30 Days
결제 방법: T/T
공급 능력: 30 Sets Per Month
상세 정보
Place of Origin
China
브랜드 이름
Sinuo
인증
Calibration Certificate (Cost Additional)
Model Number
SNB02C-2000N
Test range:
2000N
Display range:
0~500kg
Stretch space:
0~1000mm
Control method:
Computer
Speed accuracy:
Better than ±1%
Test accuracy:
Better than ±1%
Displacement resolution:
0.01mm
Test force accuracy:
±1%
Minimum Order Quantity:
1
가격:
Negotiable
Packaging Details:
Plywood Case
Delivery Time:
30 Days
Payment Terms:
T/T
Supply Ability:
30 Sets Per Month
제품 설명



IEC 60245-1 Tensile Strength Test Machine Test Range 2000N Computer Control



Product overview:



Standard: according to IEC60245-1-2008 clause 5.6.3.4, IEC60245-2-1998 clause 3.4, IEC60227-1:2007 clause 5.6.3.4, IEC60227-2:2003 clause 3.4 and clause 3.6.



Samples and restrictions: Elevator cable center cushion core.



Application: Expansion strength test for elevator cable center cushion core.



Test principle: Configure the tension clamp, take a 1m long sample from the finished cable and weigh it. Peel off all coverings within 0.2m from both ends of the specimen and remove the insulated wire core. The central pad core including the central load-bearing core should withstand a tensile force equivalent to the mass of 300m of cable. The pulling force should be applied for 1 minute.



Usage environment: Power supply: AC220V±10%/50-60Hz, 1kw, working temperature 0-40℃, humidity 30%-90%.



Technical specifications:



Equipment dimensions About: 500×500×1600 (mm) W×D×H
Equipment weight 100kg
Maximum test force 2000N
Test force display range 0~500kg
Test force classification There is no binning throughout the process, and the resolution remains unchanged throughout the process.
Test force measurement accuracy Better than ±1% of the indication value
Displacement resolution 0.01mm
Displacement measurement accuracy Better than ±1% of the indication value
Crossbeam moving speed range 25mm/min~500mm/min stepless speed regulation, speed can be set arbitrarily
Displacement speed control accuracy Better than ±1%
Stretch space 0~1000mm



IEC 60245-1 Tensile Strength Test Machine Test Range 2000N Computer Control 0



IEC 60245-1 Tensile Strength Test Machine Test Range 2000N Computer Control 1



IEC 60245-1 Tensile Strength Test Machine Test Range 2000N Computer Control 2
