| MOQ: | 1 |
| 가격: | Customized |
| 표준 포장: | 합판 케이스 |
| 배송 기간: | 30일 |
| 결제 방법: | 티/티 |
| 공급 능력: | 달 당 5 세트 |

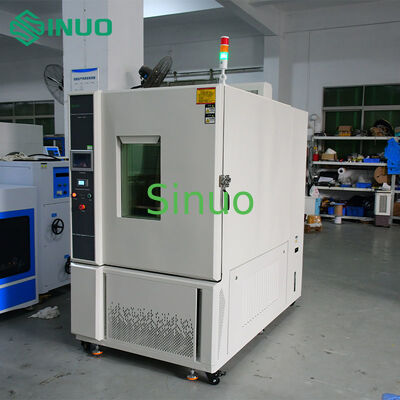

This testing chamber is designed for conducting constant temperature and humidity tests on raw materials, electronic equipment, electrical products, appliances, and plastics. It verifies product reliability during storage and transportation in controlled environmental conditions.
UL 1662:2012, UL 2056:2012, UN38.3(2012), IEC62133-2012, IEC 62281:2006, IEC 60068:2007
Temperature Range: -40℃ to +150℃
Humidity Range: 20% to 98% RH
| Parameter | Specification |
|---|---|
| Temperature fluctuation | ±0.5℃ |
| Humidity fluctuation | ≤2.5% |
| Temperature deviation | ≤±2.0℃ |
| Humidity deviation | ≤±3% |
| Heating rate | -40℃→+150℃ ≤2-3℃/min (Average No-load) |
| Cooling rate | +150℃→-40℃ ≤1℃/min (Average No-load) |
| Working noise | A-weighted sound level ≤ 70 dB(A) |
The test chamber features bottom rails with a load-bearing capacity of ≤100Kg/m³
Pressure Relief Port: 300mm * 300mm port on left side, automatically opens when internal pressure ≥0.104MPa
Explosion-Proof Chain: Enhanced safety mechanism
Explosion-Proof Window: Reinforced viewing protection
| Component | Specification |
|---|---|
| Operation mode | Air-cooled mechanical compression single-stage refrigeration |
| Compressor | USA brand low-temperature scroll compressor |
| Heat exchange | SWEP cold coal heat exchange design (Sweden SUS#316) |
| Refrigerants | R404a (ozone depletion index 0) |
| Controller | Cold balanced touch-type intelligent programmable temperature controller |
