| MOQ: | 1 |
| 가격: | Customized |
| 표준 포장: | 합판 케이스 |
| 배송 기간: | 30 일 |
| 결제 방법: | t/t |
| 공급 능력: | 한 달에 10 세트 |

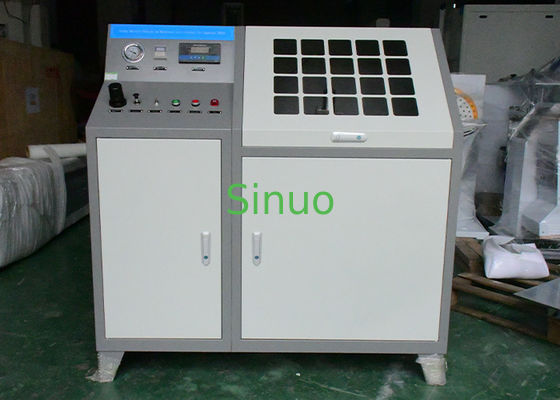

Ceramic Material Fuchsine & Methylated Spirit Pressure Test Apparatus IEC 60335-1
Product Overview
The Ceramic Material Fuchsine and Methylated Spirit Pressure Test Apparatus is designed in full compliance with IEC 60335-1, Clause 22.32.
It is used to evaluate whether ceramic materials are tightly sintered and free from internal defects under high-pressure conditions when exposed to fuchsine and methylated spirit solutions.
The system integrates a stainless-steel pressure vessel, manual pressurization system, and explosion-proof observation chamber, ensuring safe, stable, and efficient testing operations.
Key Features
Fully meets IEC 60335-1: Household and similar electrical appliances – Safety
Evaluates the density and sintering quality of ceramic materials
Compact design with explosion-proof window for safe monitoring
Digital pressure display for precise readings
Simple manual pressurization system for easy operation
Adjustable test pressure and hold time for flexible testing needs
Technical Parameters
| Item | Specification |
|---|---|
| Standard | IEC 60335-1 Clause 22.32 |
| Test Container Volume | >100 ml |
| Pressure Capacity | >15 MPa |
| Material | High-strength stainless steel |
| Maximum Test Pressure | 20 MPa |
| Pressure Range | 0–20 MPa ±0.5 MPa (adjustable) |
| Boost Rate | 100 KPa/s |
| Pressure Hold Time | 0–99 s (adjustable) |
| Pressurization Method | Manual pressurization |
| Display Mode | Digital display |
| Power Supply | Match client’s local voltage/frequency |
Operation Procedure
Fill the tank with water.
Place the ceramic sample into the test container.
Set the desired pressure value.
Tighten the pressure relief valve.
Turn on the power switch.
Set the test time (note: it only serves as a timer reminder).
Press the start switch to begin testing.
After completion, manually loosen the pressure relief valve to release pressure.
Applications
Testing the sintering compactness of ceramic insulating materials
Evaluation of material density and pressure resistance
Widely used in quality inspection labs, R&D departments, and electrical appliance testing centers
Why Choose This Equipment
Designed according to international safety standards (IEC 60335-1)
Reliable and safe operation with explosion-proof protection
High-precision pressure control and repeatable test results
Customizable power supply and test configuration to meet your regional requirements
