| MOQ: | 1 |
| 가격: | 협상 가능 |
| 표준 포장: | 합판 |
| 배송 기간: | 30 일 |
| 결제 방법: | t/t |
| 공급 능력: | 한 달에 20 세트 |
This device conforms to IEC60068-2-63 and IEC 60068-2-75 standards.

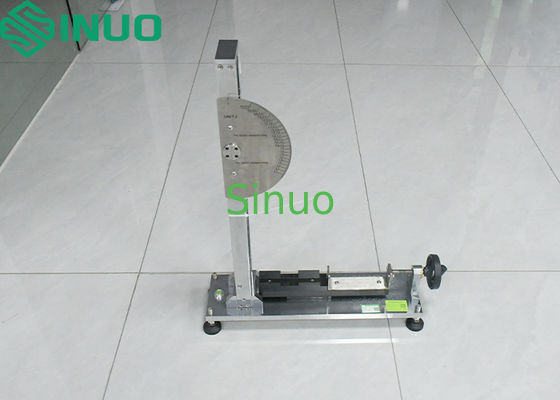

The device is designed to measure the impact energy of Spring Hammer Testers. When the spring hammer is released, it impacts the pendulum rod on the calibration device. The pendulum rod then drives the pointer to its highest position, indicating the energy of the spring impactor. The position shown by the pointer provides the recorded impact energy value.
| Parameter | Value |
|---|---|
| Precision | 0.01J |
| Repeat accuracy | ±0.01J |
| Range | 0-2J |
| Pendulum energy loss | <0.002J |
| Trigger trip | >30mm |
| Copper Weight Set | 1 (2J) |
|
|
