 Vessels For Induction Hob Elements IEC 60335-2-6:2018 Figure 102

 Vessels For Induction Hob Elements IEC 60335-2-6:2018 Figure 102

MOQ: 1
가격: 협상 가능
표준 포장: 판지 상자
배송 기간: 20 일
결제 방법: t/t
공급 능력: 한 달에 20 세트
상세 정보
원래 장소
중국
브랜드 이름
Sinuo
인증
Calibration Certificate (Cost Additional)
모델 번호
SN1115A
적용된 표준:
IEC 60335-2-6 그림 102, IEC 60335-2-9 그림 104
선박 크기:
ф110 ° ф145 ° ф180 ф220 ф300 mm
선박 재료:
저탄소강
탄소 함량:
최대 0.08%
벽 두께:
2±0.5 밀리미터
선박은 작용합니다:
식용유 가열 검사
강조하다:

induction hob test vessels

,

IEC 60335-2-6 compliant vessels

,

electrical appliance testing equipment

제품 설명
Vessels For Induction Hob Elements IEC 60335-2-6:2018 Figure 102

Product information:

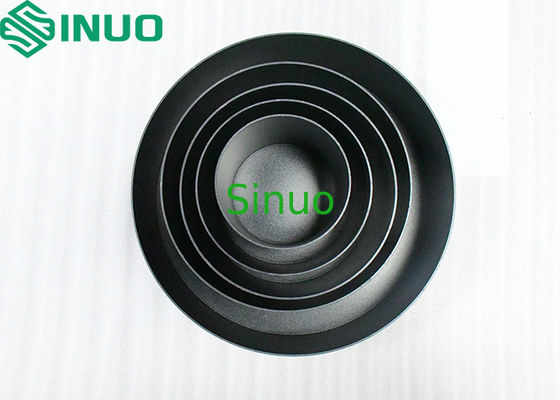

These vessels for induction hob elements conform to the standard requirements of IEC 60335-2-6:2018 figure 102 and IEC 60335-2-9:2016 clause 3.1.9.108 figure 104. Each set includes 5 pieces with diameters of Ф110 mm, Ф145 mm, Ф180 mm, Ф220 mm, and Ф300 mm.
 Vessels For Induction Hob Elements IEC 60335-2-6:2018 Figure 102 0
Product Specifications
Material Low carbon steel with maximum carbon content of 0.08%
Dimensions (mm)
Ф110: 140×(2±0.5)
Ф145: 140×(3±0.5)
Ф180: 140×(3±0.5)
Ф220: 120×(3±0.5)
Ф300: 100×(5±0.5)
Wall Thickness (mm) 2±0.5
Maximum Concavity C≦0.006d, not to be convex
Shape & Configuration Cylinder without metallic handles, protrusions, or cover
These vessels simulate cooking appliances placed on induction hotplates. Made from low carbon steel with maximum 0.08% carbon content, they are designed for precise testing and measurement applications.
 Vessels For Induction Hob Elements IEC 60335-2-6:2018 Figure 102 1
상품
제품 세부 정보
 Vessels For Induction Hob Elements IEC 60335-2-6:2018 Figure 102
MOQ: 1
가격: 협상 가능
표준 포장: 판지 상자
배송 기간: 20 일
결제 방법: t/t
공급 능력: 한 달에 20 세트
상세 정보
원래 장소
중국
브랜드 이름
Sinuo
인증
Calibration Certificate (Cost Additional)
모델 번호
SN1115A
적용된 표준:
IEC 60335-2-6 그림 102, IEC 60335-2-9 그림 104
선박 크기:
ф110 ° ф145 ° ф180 ф220 ф300 mm
선박 재료:
저탄소강
탄소 함량:
최대 0.08%
벽 두께:
2±0.5 밀리미터
선박은 작용합니다:
식용유 가열 검사
최소 주문 수량:
1
가격:
협상 가능
포장 세부 사항:
판지 상자
배달 시간:
20 일
지불 조건:
t/t
공급 능력:
한 달에 20 세트
강조하다

induction hob test vessels

,

IEC 60335-2-6 compliant vessels

,

electrical appliance testing equipment

제품 설명
Vessels For Induction Hob Elements IEC 60335-2-6:2018 Figure 102

Product information:

These vessels for induction hob elements conform to the standard requirements of IEC 60335-2-6:2018 figure 102 and IEC 60335-2-9:2016 clause 3.1.9.108 figure 104. Each set includes 5 pieces with diameters of Ф110 mm, Ф145 mm, Ф180 mm, Ф220 mm, and Ф300 mm.
 Vessels For Induction Hob Elements IEC 60335-2-6:2018 Figure 102 0
Product Specifications
Material Low carbon steel with maximum carbon content of 0.08%
Dimensions (mm)
Ф110: 140×(2±0.5)
Ф145: 140×(3±0.5)
Ф180: 140×(3±0.5)
Ф220: 120×(3±0.5)
Ф300: 100×(5±0.5)
Wall Thickness (mm) 2±0.5
Maximum Concavity C≦0.006d, not to be convex
Shape & Configuration Cylinder without metallic handles, protrusions, or cover
These vessels simulate cooking appliances placed on induction hotplates. Made from low carbon steel with maximum 0.08% carbon content, they are designed for precise testing and measurement applications.
 Vessels For Induction Hob Elements IEC 60335-2-6:2018 Figure 102 1
