| MOQ: | 1 |
| 가격: | Customized |
| 표준 포장: | Plywood Case |
| 배송 기간: | 20 Days |
| 결제 방법: | T/T |
| 공급 능력: | 100 sets per month |

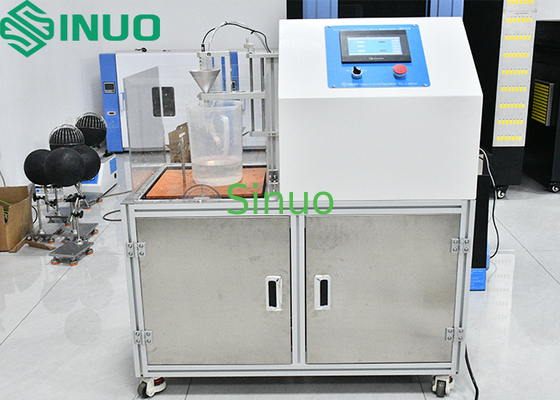

Automatic Spillage Test Apparatus Compliant Overflow Safety Testing
Product information:
Standards Compliance: Meets IEC 60335-2-6 (Clause 15.2), IEC 60335-2-25 (Clause 11, Figures 102 & 103), and IEC 60335-2-82 (Clause 15.2) requirements
It can be in 1min with 1% sodium chloride solution (container capacity of 15%, or 0.25L solution with the same concentration, the two take more) evenly into the container of the test appliance.
Use: The structure of the product in normal operation will accidentally splash water outside the container, or the water in the container is too full, when energized, the water will boil over and so on. This equipment is used to test the liquid heater for moisture resistance test, the sample can ensure that the overflow of water does not affect their electrical insulation performance.
Main Parameters:
| 1 | Control System | PLC controller with HMI (Human-Machine Interface) |
| 2 | Water Injection Mechanism | Stepper motor-driven stainless steel piston cylinder |
| 3 | Tilt Adjustment | 0~20° adjustable angle |
| 4 | Flow Control | 250mL-900mL adjustable range |
| 5 | Injection Speed | 250-900mL/min programmable rate |
| 6 | Funnel Dimensions | Ø8mm × 30mm length |
| 7 | Alignment System | Laser-guided test point alignment |
| 8 | Height Adjustment | Max. 400mm vertical range |
| 9 | Sample Platform | 350×350mm placement area |
| 10 | Power Requirements | AC220V 50Hz 500W |
