| MOQ: | 1 |
| 가격: | 협상 가능 |
| 표준 포장: | Plywood Case |
| 배송 기간: | 30 days |
| 결제 방법: | T/T |
| 공급 능력: | 15 Sets Per Month |

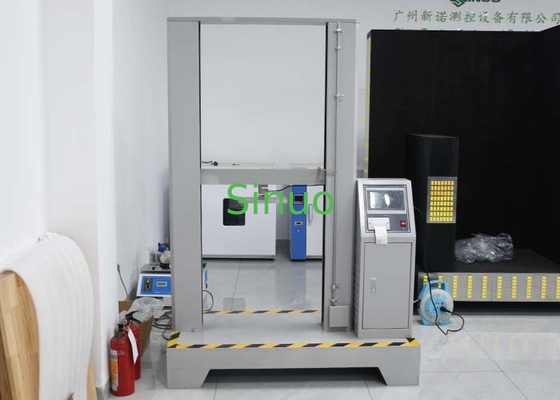

Intelligent Compressive Strength Testing Machine Packaging Testing Equipment IEC 62368-1
Product Information:
This machine is the most direct test instrument for verifying the compressive strength of cartons or other packaging containers. It is used to determine the compressive strength of cartons, and can be used for steady pressure tests and crush tests. The results of the tests can be used as an important reference for the height of the finished product containers at the factory. The important basis for designing the packaging box. It can also be used to process testing as per IEC 62368-1:2018 clause 4.8 and 8.6.2, IEC 60950-1:2013 clause 4.1, clause 4.2.10 and IEC60065:2014 clause 12.7.3.6, etc.
The machine uses a motor drive screw to move the upper platen downwards, thereby compressing the sample; as a result, the force sensor is used in conjunction with the display to automatically display the strength value.
Technical Parameters:
| Applied standard | IEC 62368-1 |
| Applied clause | 4.8 and 8.6.2 |
| Capacity | 0~1T |
| Accuracy level | Level 1 |
| Control method | Controlled by microcomputer |
| Display method | Electronic LCD display |
| Power unit | kgf, gf, N, kN, lbf |
| Stress unit | Pa, kPa, MPa, kgf/cm2, lbf/in2 |
| Displacement unit | mm, cm, in |
| Power resolution | 1/100000 |
| Display resolution | 0.02N |
| Lifting stroke | 1200 mm |
| Press plate size | 125mm * 200mm as per IEC 62368-1:2018 clause 8.6.2 |
| Bottom platen size | 600mm * 600mm * 60mm |
| Software function | English display |
| Shutdown mode | Overload shutdown, emergency stop button, automatic shutdown of test piece destruction, automatic shutdown of upper and lower limit settings |
| Safety equipment | Overload protection, limit element protection device |
| Machine power | AC variable frequency motor drive controller |
| Lifting rail | High precision ball screw |
| Power supply | AC220V/50Hz |
| Machine weight | Around 350KG |
| Performance characteristics | The percentage break value can be set, the machine will stop automatically, and the speeds can be preset when enter the menu. 40 results are available, the average of all test results and single results can be viewed. |
