Vertical Impact Test Platform For 3D-Printed Samples Impact Resistance
Product information:
This test platform is custom-designed and manufactured strictly according to customer requirements. It is specifically developed to verify the impact resistance of 3D-printed samples and serves as a specialized mechanical strength testing device. It is suitable for use in certification bodies and factory laboratories.
The system consists of an electromagnet release mechanism, impact element, frame, and control system. Controlled via PLC, the drop height is adjustable through a touchscreen and can be operated remotely. The system features electric lifting, automatic magnetic ball adsorption, and supports repeated drop tests.
Purpose, Principle & Structure:
This test machine is primarily used for impact resistance testing of metal 3D-printed samples.
Working Principle:
According to standard Ehc for vertical drop hammer tests, the impact element (a Φ180mm steel ball weighing 24 kg) freely falls from a defined height through a guiding tube, striking the sample vertically. The system converts gravitational potential energy into kinetic energy to achieve impact testing on the sample.

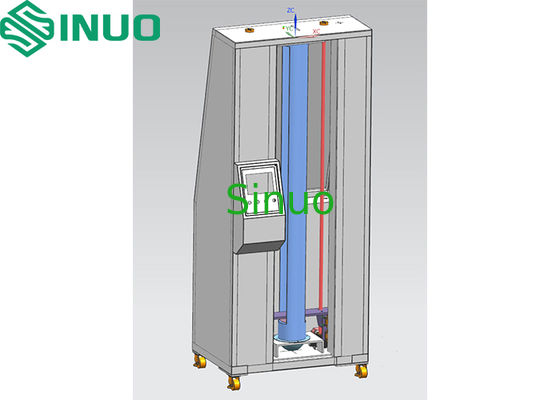

Structure:
Technical Specifications:
| No. | Item | Specification |
| 1 | Power Supply | AC 220V 50Hz, 1 kW |
| 2 | Control System | PLC control, touchscreen operation |
| 3 | Test Sample | Metal 3D-printed sample, max size 20 × 20 × 20 cm |
| 4 | Test Station | 1 station |
| 5 | Steel Ball | Φ180 mm, 24 kg |
| 6 | Drop Height | 200–1800 mm, adjustable via touchscreen |
| 7 | Impact Energy | Calculated by E = mgh, up to 423 J |
| 8 | Drop Guide Tube | Dedicated tube for each impactor, small clearance fit |
| 9 | Impact Point | Fixed, consistent position through guided drop |
| 10 | Test Cycles | 0–999,999, presettable |
| 11 | Test Process | Lift via electromagnet, release manually or automatically |
| 12 | Frame Structure | Reinforced steel frame, designed to withstand high stress |
| 13 | Dimensions (W×D×H) | Approx. 1000 × 700 × 2300 mm |
| 14 | Weight | 250 kg |
Main System Configuration:
| Component | Brand |
| Electrical Cabinet | Sinuo |
| PLC | Mitsubishi |
| Touchscreen | Weintek |
| Electrical Components | FUJI, Schneider, Omron, Chint |
| Electromagnet | Domestic |
| Guide Rail | Taijia |
| Frame | Sinuo |
| Fixture | Sinuo |
| Software | Sinuo |
